ECO-BOLLARD SPHERE
ECO-ROAD SAFETY
Road safety accessories made from recycled rubber.
Parking bollard made of recycled rubber
Recycled rubber parking bollard for parking lots and urban spaces
ECO-BOLLARD SPHERE is a parking bollard with a distinctive panettone-shaped design, made from recycled SBR rubber sourced from end-of-life tyres (ELTs). We recommend it for delineating and organizing parking lots, driveways, pedestrian areas, and public or private spaces where a stable, weather-resistant solution is needed that can mitigate the effects of accidental impacts.
Impact absorption
The flexibility of the rubber helps reduce damage caused by accidental contact.
Dedicated Configurations
Without a hole, with a central hole (Ø 70 mm), or with an eye bolt.
European Patent
Product covered by European Patent No. 07425611.6.
Ø 520 mm
Diameter
530 mm
Height
Approx. 75 kg
Approximate weight
Ø 70 mm
Optional center hole
Black · Red · Green
Standard Colors
01 / Product
A bollard designed to demarcate and protect spaces
ECO-BOLLARD SPHERE is made from recycled SBR rubber granules derived from ELTs, bonded with polyurethane resins. The structure incorporates an internal aggregate to increase its mass and contribute to the bollard’s stability.
Why Choose the ECO-BOLLARD SPHERE
The rubber makes the product flexible in the event of an impact and helps limit damage resulting from accidental contact compared to items made from traditional rigid materials.
- Recycled SBR rubber from ELTs: we repurpose a secondary raw material derived primarily from end-of-life tyres.
- Greater safety in the event of contact: the rubber’s flexibility helps absorb impacts and reduce accidental damage.
- Versatile configuration: available without a hole, with a through-hole for posts, or with an eye bolt.
- Outdoor use: suitable for parking lots, urban areas, pedestrian zones, and other public or private spaces.
- Stability: The product’s mass and the inert material inside help keep it stable in its intended position.
- Recyclable at the end of its life: The product can be sent to authorized operators for proper recycling.
This product is intended for outdoor use and is resistant to rain, frost, and UV rays. Prolonged exposure to sunlight may cause the color to change over time.
02 / Configurations
Configurations for Different Usage Needs
The ECO-BOLLARD SPHERE can be supplied without a hole, with a Ø 70 mm through-hole in the center, or with a chain eye.
Version without a hole
The basic configuration for use as a parking bollard and space-delimiting element.

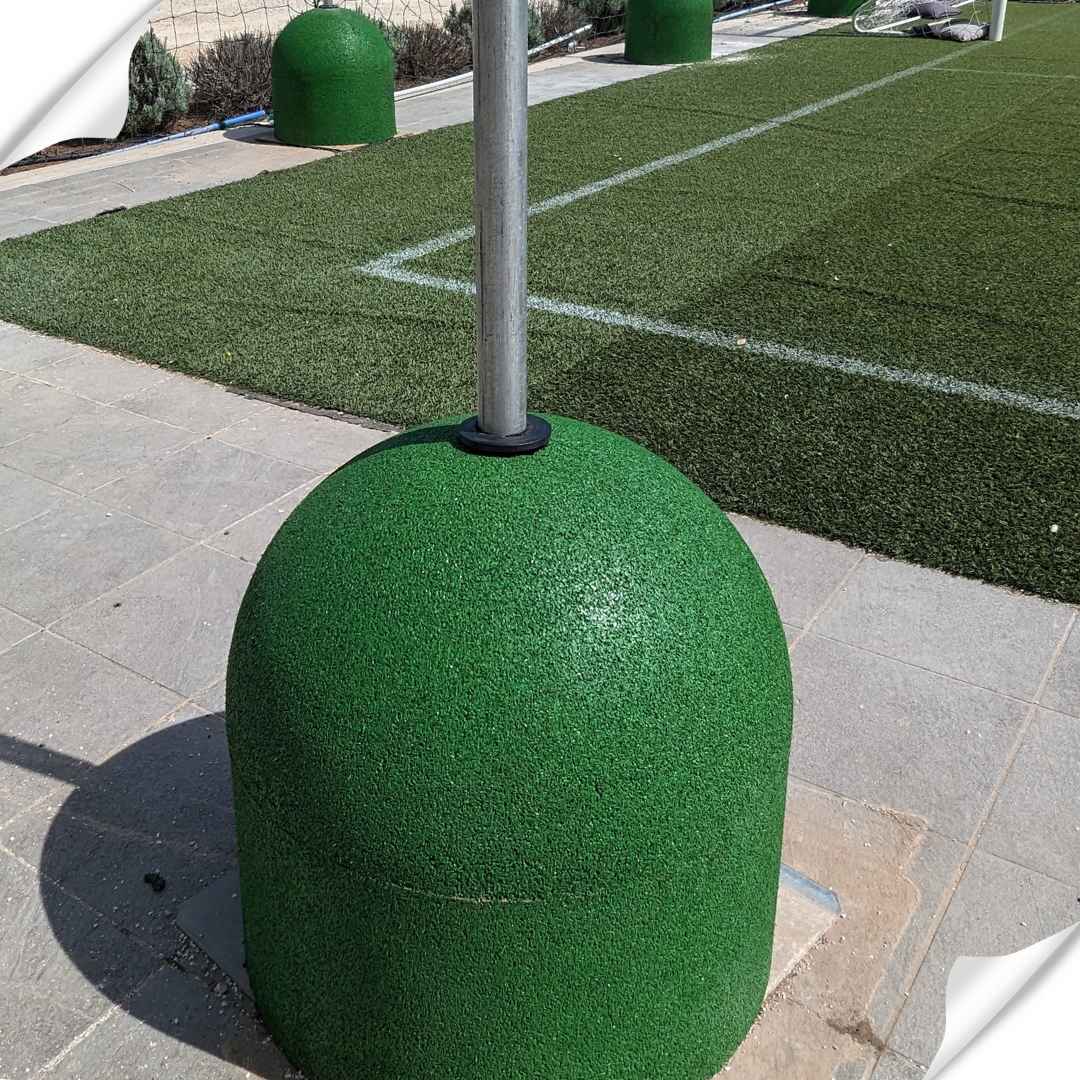

Version with a 70 mm center hole
The through-hole allows for the installation of a signpost, combining boundary marking and signage in a single element.
Version with a eyebolts
The eye bolt allows you to connect multiple bollards using a chain or rope.
Connecting multiple units in a chain.
Central hole used to hold a pole.
Close-up of the eye bolt with chain.
Daisy-chain configuration.
03 / Specifications
Essential Product Information to Help You Choose
Main dimensions and configurations of the ECO-BOLLARD SPHERE.
| Dimensions | Approximate weight | Optional center hole | Configurations |
|---|---|---|---|
| Ø 520 × H 530 mm | about 75 kg | Ø 70 mm | no hole / through hole / eye bolt |
04 / Colors
Available Colors and Finishes
ECO-BOLLARD SPHERE is available in the standard colors black, red, and green.
Documented Colorations
Standard: black, red, green.
Prolonged exposure to sunlight may cause color changes over time.
05 / Applications
Where to Use the ECO-BOLLARD SPHERE
Parking
To mark off parking spaces, routes, and areas where vehicle traffic must be organized or restricted.
Urban Areas and Public Spaces
For marking areas subject to vehicular traffic or where vehicles and pedestrians share the space.
Entrances and Passages
To highlight and secure entrances, pathways, and areas where traffic flow must be controlled.
Pedestrian areas
The flexible structure made of recycled rubber allows the bollard to be used even in areas designed to separate pedestrian walkways from vehicular traffic.
Shopping centers and private spaces
For parking lots, entrances, service areas, and other private settings where a visible and durable solution is needed to demarcate spaces.
Integration into an urban setting.
Boundary marking near street furniture.
Used along the perimeter of a roundabout.
06 / Recycling
Recycled Rubber and End-of-Life Products
We manufacture ECO-BOLLARD SPHERE using recycled SBR rubber sourced primarily from end-of-life tyres.
At the end of its useful life, the product may be sent for recovery and recycling through authorized companies, in accordance with the procedures established for the proper management of the material.
07 / Documentation
ECO-BOLLARD SPHERE Technical Documentation
For more information on composition, tolerances, chemical resistance, packaging, and end-of-life handling instructions, request the updated product data sheet.
Composition: SBR rubber granules from ELTs bound with polyurethane resin and pigments.
Chemical resistance: Detailed information is available in the technical data sheet.
Tolerances and packaging: information provided in the technical documentation.
Patent: European Patent No. 07425611.6.
08 / FAQ
Frequently Asked Questions About the ECO-BOLLARD SPHERE
What is the ECO-BOLLARD SPHERE used for?
It is a parking bollard made of recycled rubber, designed to demarcate parking spaces, entrances, urban areas, pedestrian zones, and other public or private spaces.
What are the dimensions of the ECO-BOLLARD SPHERE?
The bollard measures 520 mm in diameter and 530 mm in height, with an approximate weight of 75 kg.
Can the ECO-BOLLARD SPHERE accommodate a signpost?
Yes. We can supply it with a Ø 70 mm through-hole in the center for mounting posts.
Is it also available without a center hole?
Yes. The ECO-BOLLARD SPHERE is available without a hole, or in versions with a center hole or a lifting eye.
Is it possible to connect multiple bollards with a chain?
Yes. The configuration with eyebolts allows you to connect multiple units using a chain or rope.
What colors are available?
The standard colors are black, red, and green. The technical documentation also specifies versions painted in RAL 1003 yellow and RAL 3020 red.
Is the bollard suitable for outdoor use?
Yes. The material is resistant to rain, frost, and UV rays. Over time, exposure to sunlight may cause the color to fade.
Why use a rubber bollard instead of a rigid one?
The flexibility of rubber allows it to absorb accidental impacts and reduce potential damage to vehicles and infrastructure compared to traditional rigid materials.
Is the ECO-BOLLARD SPHERE recyclable?
Yes. At the end of its useful life, it can be sent for recovery and recycling through authorized operators.
Is ECO-BOLLARD SPHERE patented?
Yes. The product is covered by European Patent No. 07425611.6.
ECO-ROAD SAFETY
Consider the ECO-BOLLARD SPHERE for your project
Please contact us to verify the configuration, color, and technical documentation based on your intended application.
