Cylindrical playground equipment made from recycled rubber for parks and playgrounds
ECO-DRUM is a cylindrical outdoor play structure made from SBR rubber granules derived primarily from end-of-life tyres (ELTs). The drainage structure promotes rapid drying, while the internal galvanized steel anchoring system ensures the structure’s stability. Available in three heights, it is designed for playgrounds, recreational areas, and urban settings.
Configurations
3 heights
, 300 / 400 / 500 mm
Anchor
Ø 50 mm
Galvanized steel post
SBR from End-of-Life Tires: Granules made primarily from end-of-life tires.
Ø 250 mm
Diameter of the cylindrical body.
300–500 mm
Three heights available.
5 colors
: Black, red, green, light blue, and gray.
EN 1176 / EN 71-3
. Compliance is stated in the technical documentation.
01 / Product
Three heights for designing the play area
ECO-DRUM combines a minimalist design with a sturdy structure designed for permanent outdoor installation. The cylindrical body is made of SBR rubber granules bound with polyurethane resin and colorant; inside is a galvanized steel anchoring system.
The three available heights—300, 400, and 500 mm—allow you to choose the configuration that best suits your playground design while maintaining the 250 mm diameter. The material’s structure is porous and promotes drying after exposure to water.
Configurations
Constant diameter, three heights
The body diameter is Ø 250 mm for all versions. The available heights are 300, 400, and 500 mm, with a Ø 50 mm anchor post made of galvanized steel.
02 / Gallery
Shape, Surface, and ECO-DRUM Configurations
The gallery shows a close-up view of the product, the different heights available, and some examples of how it can be installed in a play area. The photographs showing different colors are application examples: the standard colors are black, red, green, light blue, and gray.
Detail of the granular surface
Three heights available
Anchor Elements and Posts
Different heights and finishes
ECO-DRUMs installed in the playground
Setup in a Play Area
03 / Applications
Where to Use ECO-DRUM
ECO-DRUM is designed as playground equipment for outdoor installations. It can be installed in public playgrounds, play areas, recreational spaces, and urban settings, with the height of the unit selected based on the intended configuration.
The cylindrical shape and the availability of multiple heights make it possible to incorporate multiple elements into the playground design, while the drainage material is suitable for outdoor use.
Public Playgrounds
Play element for projects designed for outdoor play areas.
Play Areas
Three heights are available for configuring the layout of the area.
Recreational Areas
A drainage system designed for outdoor installations.
Urban Contexts
Cylindrical equipment that can be incorporated into playground and recreational space designs.
04 / Technical Specifications
Available Sizes and Configurations
The three versions all have a diameter of Ø 250 mm and differ in height, weight, and drop height, as specified in the technical documentation.

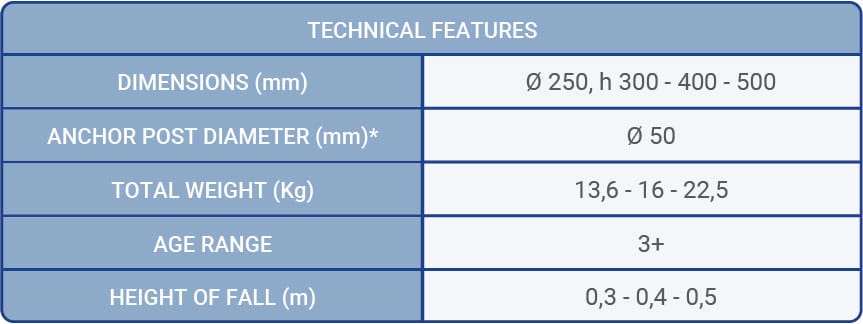

| Version | Diameter | Height | Weight | Drop Height |
|---|---|---|---|---|
| ECO-DRUM 300 | Ø 250 mm | 300 mm | 13.6 kg | 0.3 m |
| ECO-DRUM 400 | Ø 250 mm | 400 mm | 16 kg | 0.4 m |
| ECO-DRUM 500 | Ø 250 mm | 500 mm | 22.5 kg | 0.5 m |
Anchor
Ø 50 mm
A galvanized steel post is included with all versions.
Material
SBR Rubber
Granules made primarily from end-of-life tyres (ELTs).
05 / Colors and Composition
Five standard colors
ECO-DRUM is available in the standard colors black, red, green, light blue, and gray.
The body of the product is made from SBR rubber granules derived primarily from end-of-life tyres (ELTs), with possible minor amounts of recycled rubber from other sources, bound together with polyurethane resin and colorant paste.
Black
Red
Green
Blue
Gray
06 / Installation
Anchoring to the substrate
The standard installation involves constructing a stable, level concrete foundation into which a Ø 50 mm galvanized steel anchor post is inserted. The product must be installed at the correct height relative to the finished floor or ground level.
When it is not possible to install the plinth, a steel plate is available upon request for securing the unit to a concrete screed using anchors. Complete installation instructions, including procedures for reinforcing the anchorage and safety clearances, are provided in the technical data sheet.
Plinto
Concrete
A stable, level substrate to ensure the mechanical integrity of the anchor.
Pole
Ø 50 mm
Inserting the galvanized steel post into the concrete foundation.
Alternative
Plate available upon request
Installation using anchors in the concrete screed when a plinth cannot be installed.
07 / Security and Compliance
Designed for use in playgrounds
ECO-DRUM is certified as compliant with EN 1176 regarding the safety of playground equipment and with EN 71-3 regarding the migration of certain elements. The technical data sheet specifies EN 71-3, Edition 2019 + A1:2021, and states that the tests were conducted by an independent third-party organization.
For the 300-, 400-, and 500-mm versions, the technical data sheet specifies drop heights of 0.3, 0.4, and 0.5 m, respectively. Installation conditions, operating spaces, and drop zones must be defined in accordance with the applicable technical guidelines and regulations.
EN 1176
Declaration of Conformity for Safety in Play Areas.
EN 71-3
Applicable edition: EN 71-3:2019 + A1:2021.
Drop Heights
0.3 m / 0.4 m / 0.5 m, depending on the version.
08 / Documentation
Technical Data for Design and Installation
The ECO-DRUM technical data sheet contains complete information regarding the product’s composition, dimensions, weights, installation, chemical resistance, compliance, storage, and end-of-life management.
Dimensions and Weights: Specifications for the three versions, with indicated tolerances.
Installation: Preparing the baseboard, anchoring, installation height, and the option with a mounting plate.
Compliance: References to EN 1176 and EN 71-3 are included in the technical documentation.
09 / FAQ
FAQs About ECO-DRUM
Quick Answers for Designers, Installers, Retailers, and Playground Operators.
What sizes are available for the ECO-DRUM?
ECO-DRUM has a diameter of Ø 250 mm and is available in heights of 300, 400, and 500 mm, weighing 13.6, 16, and 22.5 kg, respectively.
What colors is it available in?
The documented standard colors are black, red, green, light blue, and gray.
How is the ECO-DRUM secured?
Standard installation involves inserting the Ø 50 mm anchor post into a concrete pedestal. A steel plate is also available upon request for securing the post to a concrete screed using anchors.
Is playground safety surfacing required under ECO-DRUM?
The technical data sheet indicates that, for fall heights of 0.3, 0.4, and 0.5 m, EN 1176-1 does not require the use of playground safety surfacing; however, it does recommend its use to increase safety. Safety distances, fall zones, and designated areas of use must still be observed.
Which standards does ECO-DRUM comply with?
The documentation certifies compliance with EN 1176 and EN 71-3; for the latter, the technical data sheet lists EN 71-3:2019 + A1:2021.
