Floor Joint Connector
Beveled transition trim for rubber gym flooring
ECO-GYM RAMP is a sloped profile made of recycled rubber that bridges the height difference between the plates and the existing floor. It is available in three different finishes, designed to coordinate with their respective flooring options: ECO-GYM, ECO-GYM TOP, and ECO-GYM LAMINATED.
Coordinated versions
3 custom finishes
Heights
20 / 30 mm
Adaptability
Can be cut to size
What is it?
A sloped profile designed to be installed along the edge of slab flooring to create a gradual transition to the existing floor.
What is it used for?
It reduces the height difference along the perimeter or at the access points to the rubberized surface.
How to Choose
This version must be paired with the installed flooring: ECO-GYM, ECO-GYM TOP, or ECO-GYM LAMINATED.
1000 mm
Profile length.
200 mm
Development of the connector.
10 mm
Documented end dimension.
3 combinations
: ECO-GYM, TOP, and LAMINATED.
Edges and Access Points: Connection to the rubberized surface.
01 / Product
A transition piece that matches the flooring
ECO-GYM RAMP complements the flooring system in areas where the thickness of the slabs creates a height difference compared to the surrounding surface. The sloped profile creates a gradual transition between the two levels and maintains aesthetic continuity with the existing flooring.
We manufacture three specific versions, which differ in their surface texture:
ECO-GYM RAMP
Medium-sized granule
Version designed to coordinate with ECO-GYM weight plates.
ECO-GYM RAMP TOP
Polverino
Version designed to coordinate with ECO-GYM TOP plates.

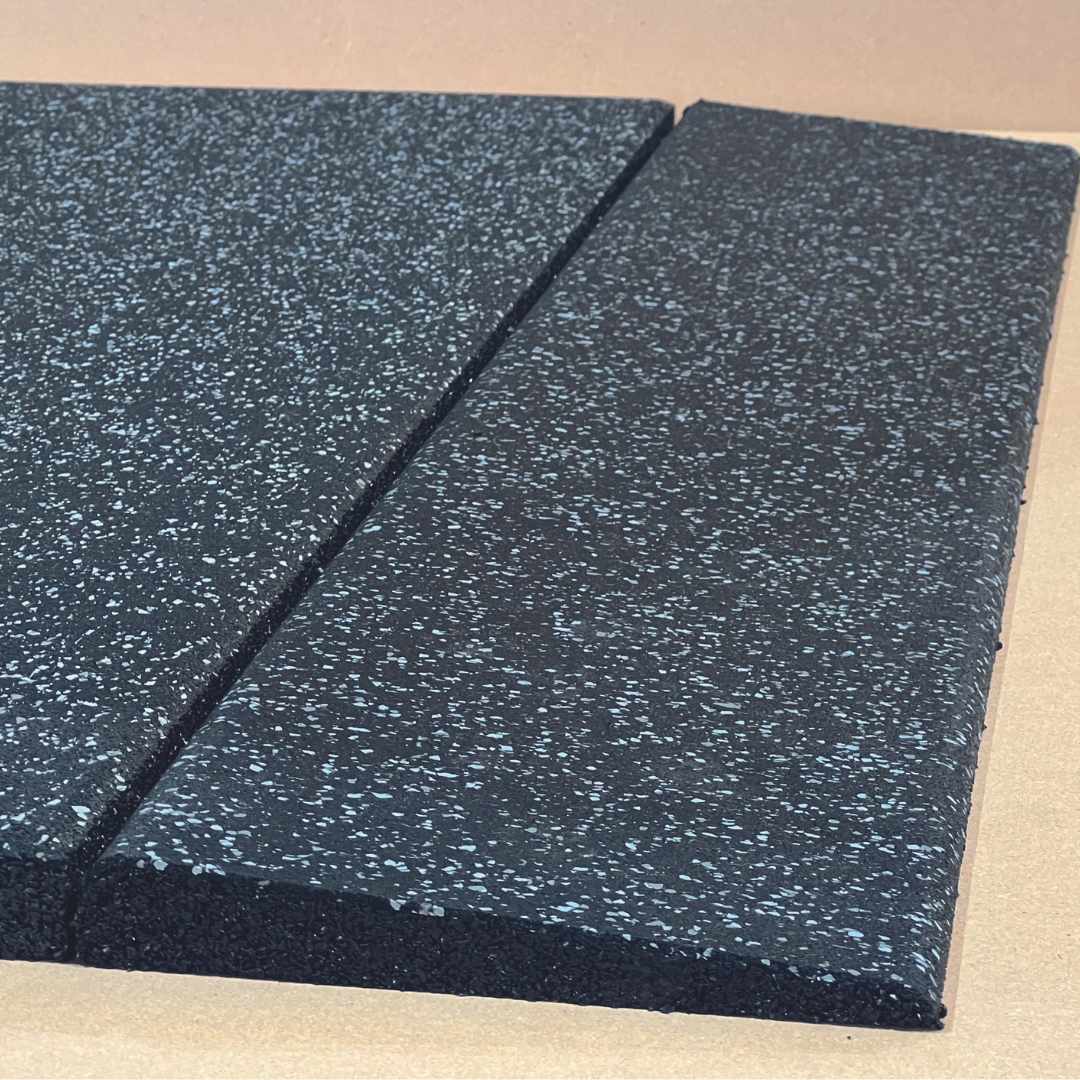

ECO-GYM RAMP LAMINATED
Two-layer
Medium-grain structure with a powder-coated finish featuring EPDM, designed to coordinate with ECO-GYM LAMINATED plates.
02 / Gallery
Profiles and Details of the Fitting

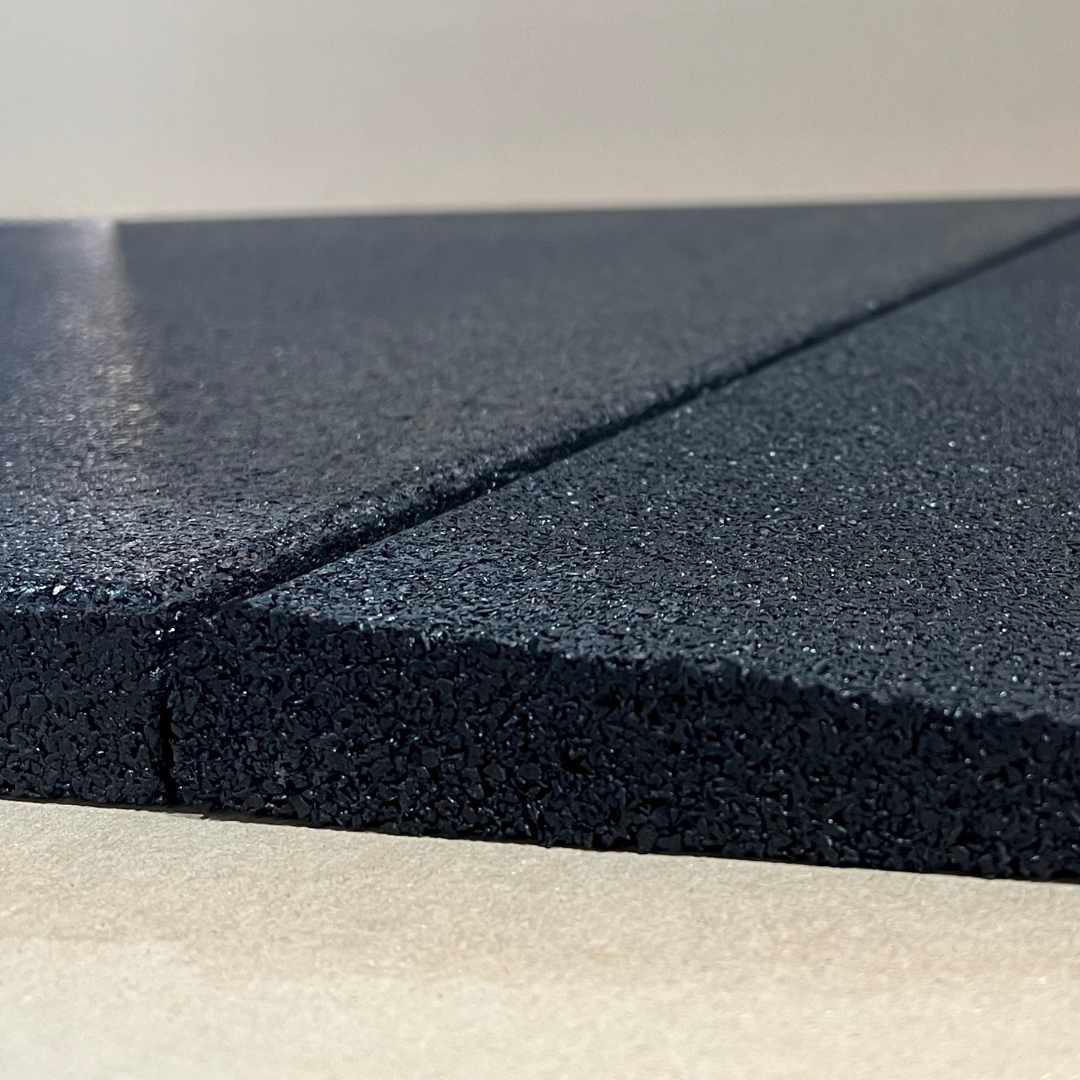

The detail shows how the sloped profile runs alongside the plate and continues toward the existing flooring.

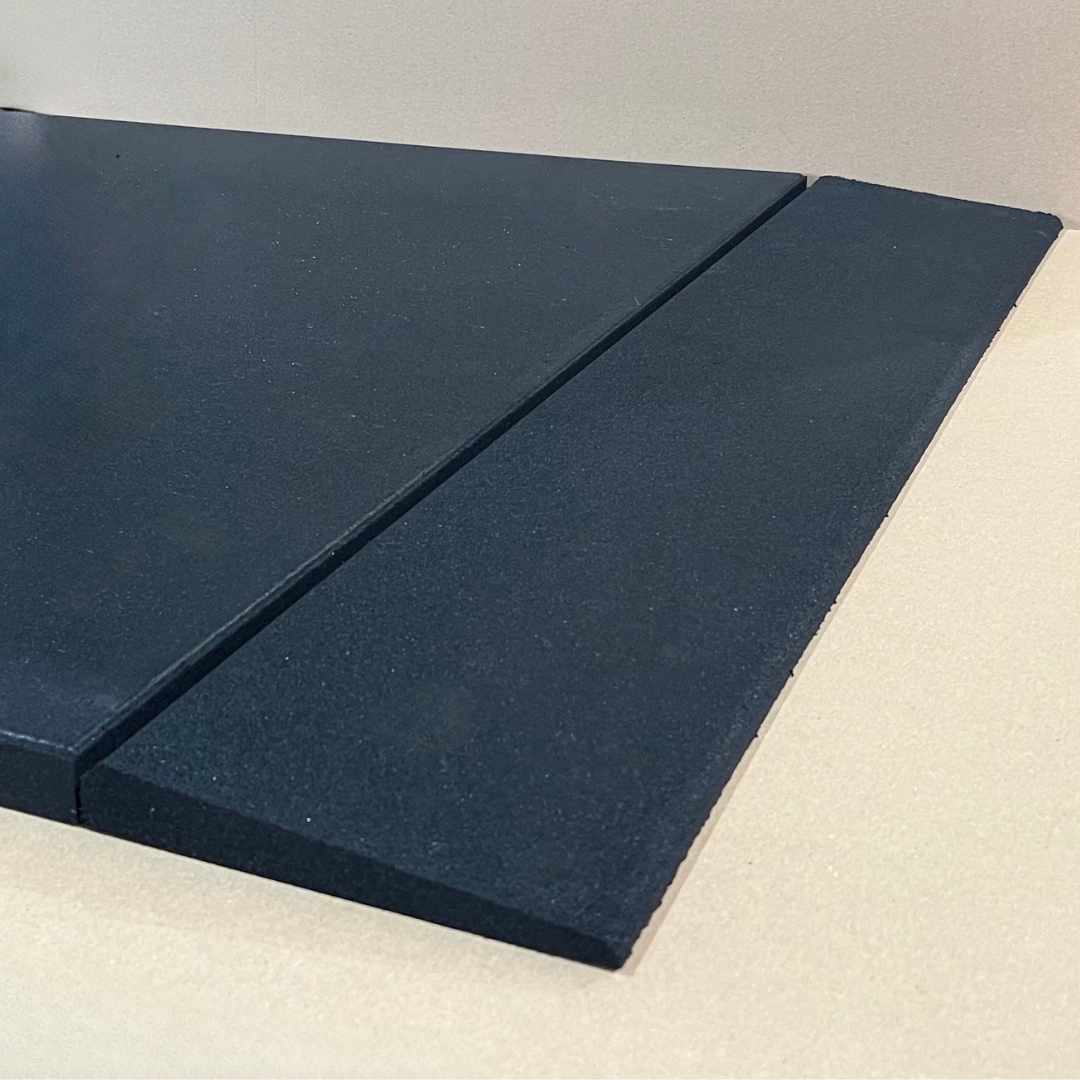

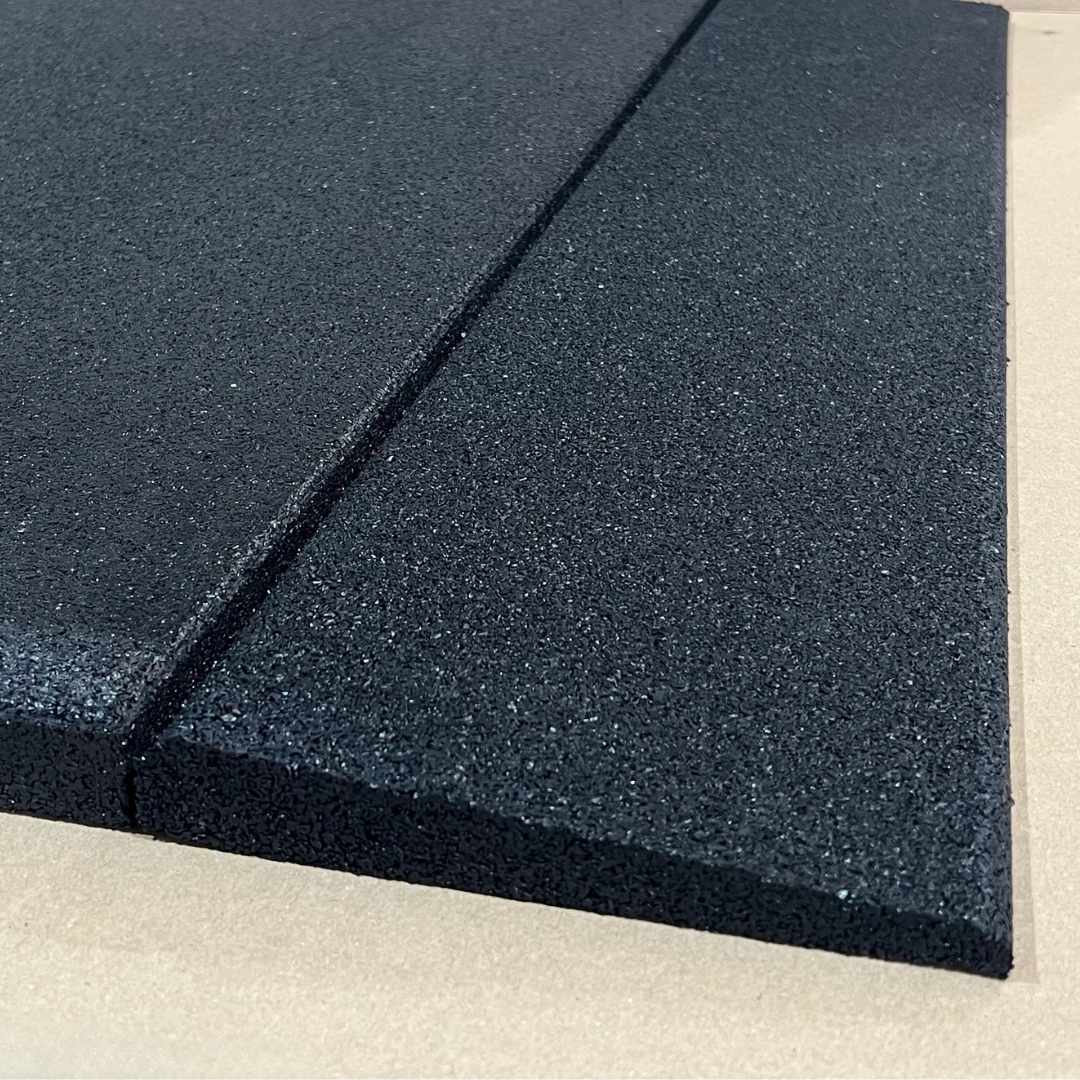

Detail of the connection between the plate and the sloped profile
03 / Applications
Where to Use ECO-GYM RAMP
ECO-GYM RAMP is designed for the edges and access points of compatible ECO-GYM flooring systems, when it is necessary to match the thickness of the slab to the level of the surrounding surface.
Perimeter Edges
Complete the perimeter of the flooring where the slabs end at a lower level.
Entrances and Passages
It allows you to manage the transition between the rubber flooring and the existing floor.
Angles and Perimeter Geometry
The profile can be cut and shaped to fit the layout of the area.
04 / Product Information
Profile Dimensions
The two available heights have the same length and the same fitting profile; the height on the side of the plate differs.
| Length | Development of the connector | 20 mm version | 30 mm version |
|---|---|---|---|
| 1,000 mm | 200 mm | from 20 to 10 mm | from 30 to 10 mm |
05 / Finishes
Finishes that match the flooring
The three versions presented in the product section feature the same finish as their respective flooring options, ensuring visual continuity between the tile and the trim piece.
06 / Installation
Cutting and Shaping the Fitting
ECO-GYM RAMP can be cut to size and shaped with a utility knife, a feature that is useful for adapting the profile to the perimeter of the flooring and for creating corners.
Installation Instructions
Fitting and Fastening
The profile can be cut and shaped with a utility knife to fit the perimeter to be joined. To install it, prepare a clean, flat surface and use a suitable polyurethane adhesive.
07 / FAQ
ECO-GYM RAMP FAQ
Quick answers to help you choose the right profile and check compatibility with your existing flooring.
What is ECO-GYM RAMP used for?
It is used to bridge the height difference created by the paving slabs and the existing floor, completing the edge of the rubberized surface.
What types of flooring is it compatible with?
Three versions are documented: ECO-GYM RAMP for ECO-GYM, ECO-GYM RAMP TOP for ECO-GYM TOP, and ECO-GYM RAMP LAMINATED for ECO-GYM LAMINATED.
What sizes are available?
The profiles are 1,000 mm long and have a width of 200 mm. They are available in versions with a plate side height of 20 or 30 mm.
Does the profile extend all the way to zero on the outer side?
No. The dimensional drawing specifies an end dimension of 10 mm for both the 20-mm and 30-mm versions.
Can ECO-GYM RAMP be cut?
Yes. It can be cut to size and shaped with a utility knife, even to fit around corners.
Which ECO-GYM RAMP model should I choose?
Choose the version based on the flooring installed: ECO-GYM RAMP with medium-sized granules for ECO-GYM, ECO-GYM RAMP TOP (fine powder) for ECO-GYM TOP, and ECO-GYM RAMP LAMINATED (two-layer) for ECO-GYM LAMINATED.
Technical Support
Request a compatibility check for ECO-GYM RAMP
Please tell us the flooring model, the thickness of the tiles, the number of linear meters to be installed, and the perimeter configuration. We’ll help you find the most suitable option and provide the information you need for installation.
