ECO-PAV
ECO-FUN
Paving and equipment for playgrounds and recreational areas.
Resilient flooring made from recycled rubber
ECO-PAV: Recycled Rubber Flooring for Playgrounds and Recreational Areas
ECO-PAV is a modular flooring system made from recycled rubber, designed to create resilient and drainage-friendly surfaces in playgrounds, recreational areas, and communal spaces. Made from recycled rubber granules derived from end-of-life tires, it is available in a 1000 × 1000 mm format in thicknesses of 20 and 25 mm. The surface promotes water runoff and quick drying.
Format
1,000 × 1,000 mm
Thicknesses
20 / 25 mm
Colors
5 standards
01 / Product
Modular flooring made from recycled rubber for outdoor spaces
ECO-PAV is made from recycled rubber granules derived primarily from end-of-life tires. Its elastic structure provides comfort underfoot and good drainage, making the flooring suitable for a variety of play, recreational, and community settings.
Surface finishes
Version with grout lines or a smooth surface
The standard version features surface joints that simulate four 500 × 500 mm modules. A version with a smooth surface is also available upon request, subject to the minimum order quantity.
02 / Gallery
ECO-PAV in Applications
The images show ECO-PAV in various configurations, colors, and installation settings, ranging from play areas to recreational spaces and outdoor surfaces.
Green space in the play area
Outdoor Recreation Area
Installation in a playground
Recreation area with an inflatable
Side view of the installation
Front view of the recreational area
Close-up of the red surface
Green Space Details
Surface and Thickness Details
03 / Applications
ECO-PAV for play areas, terraces, and recreational spaces
ECO-PAV is a versatile solution for play and recreational areas, courtyards, terraces, parks, gardens, and other public spaces where elasticity, underfoot comfort, and drainage capacity are required.
Play and Recreation Areas
For spaces designed for play, socializing, and outdoor activities.
Schools and Community Spaces
For courtyards and outdoor areas where flexible, well-drained paving is required.
Terraces and Outdoor Spaces
For covering exterior surfaces that are compatible with the planned installation configuration.
Parks and Gardens
For paths, rest areas, and surrounding areas.
Note: For areas where a specific critical fall height certified in accordance with UNI EN 1177 is required, flooring with documented performance for that application must be selected.

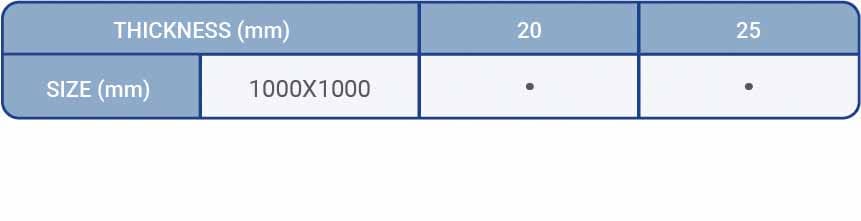

04 / Formats and Versions
ECO-PAV Sizes, Thicknesses, and Finishes
ECO-PAV is available in the 1000 × 1000 mm size with thicknesses of 20 and 25 mm, in a standard version with surface grooves or in a smooth version upon request.
| Format | Thicknesses | Area |
|---|---|---|
| 1,000 × 1,000 mm | 20 / 25 mm | With grout lines / smooth finish upon request |
Standard version: surface with grout lines that simulates four 500 × 500 mm modules.
Smooth version: available upon request, subject to a minimum order quantity.

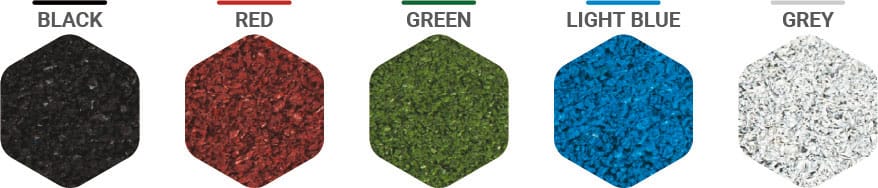

05 / Colors
Black, red, green, light blue, and gray
ECO-PAV is available in five standard colors : black, red, green, light blue, and gray.
Black
Red
Green
Blue
Gray
06 / Installation
Installation of ECO-PAV on a stable subbase
ECO-PAV must be installed on a stable, level, and properly prepared surface. Installation may be considered on compact substrates such as concrete or asphalt, provided their suitability is verified in advance.
Gluing
Possible
The tiles can be glued to the substrate using an adhesive suitable for rubber flooring.
Installation Without Adhesive
With perimeter containment
When choosing a glue-free installation method, the surface must be properly secured along the perimeter to limit movement and misalignment.
Installation Diagram
Aligned or offset
The panels must be fitted together precisely; for larger surfaces, a staggered layout may also be used.
07 / Security and Compliance
ECO-PAV complies with EN 71-3
ECO-PAV is certified as compliant with EN 71-3, which pertains to the migration of certain elements.
EN 71-3
Reference regarding the migration of certain elements in the context of toy safety.
UNI EN 1177
ECO-PAV is not offered with a certified critical fall height rating. For applications requiring this performance, specific flooring options must be evaluated.
08 / FAQ
FAQs About ECO-PAV
Quick Answers for Designers, Installers, Retailers, and Managers of Play and Recreation Areas.
What is ECO-PAV?
ECO-PAV is a modular flooring system made of recycled rubber for playgrounds, recreational areas, and outdoor surfaces.
What are the dimensions of ECO-PAV?
The plates measure 1000 × 1000 mm and are available in thicknesses of 20 and 25 mm.
What finishes are available?
The standard version features grout lines that simulate four 500 × 500 mm modules. A version with a smooth surface is also available upon request, subject to a minimum order quantity.
What colors are available?
The standard colors are black, red, green, light blue, and gray.
Does ECO-PAV provide drainage?
Yes. The design promotes water drainage and quick drying.
Can ECO-PAV be glued?
Yes. Adhesive bonding is a viable option, to be evaluated based on the substrate and the installation method.
Is it possible to install ECO-PAV without adhesive?
Yes, provided that adequate perimeter containment is in place for the area.
Is ECO-PAV compliant with EN 71-3?
Yes. Compliance with EN 71-3 is stated in the product specifications.
Does ECO-PAV have a certified critical fall height?
ECO-PAV is not offered with a certified critical fall height value in accordance with UNI EN 1177. For applications requiring this performance, specific flooring options must be evaluated.
How do you clean ECO-PAV?
For routine cleaning, sweeping or washing with water is sufficient.
Technical and Commercial Inquiry
Request information about ECO-PAV
Contact us to identify the ECO-PAV configuration best suited to your project and to determine the size, thickness, surface finish, color, and installation method.
