ECO-SAFE CORNER
ECO-FUN
Paving and equipment for playgrounds and recreational areas.
Protective corner guard made of recycled rubber
ECO-SAFE CORNER: Recycled rubber corner guards for impact protection
ECO-SAFE CORNER is the corner protector from the ECO-FUN line, designed to absorb impacts and provide added protection for corners in the event of slips, falls, or accidental contact. Made from recycled rubber derived from end-of-life tires (ELTs), it can be easily cut to size and quickly installed on the surface to be protected. The ECO-FUN catalog lists ECO-SAFE CORNER as UNI EN 913:2009 certified for gymnastics equipment.
Recycled Rubber from End-of-Life Tires.
1000 mm
Profile length.
95 × 25 mm
Profile cross-section.
3.5 kg
Profile weight.
01 / Product
Edge protection with a resilient profile
ECO-SAFE CORNER is designed to cover exposed corners with a shock-absorbing profile made of recycled rubber. This protection is intended for areas where a slip, fall, or accidental contact could result in an impact against the corner. The profile is 1,000 mm long, with a side length of 95 mm and a thickness of 25 mm, and can be easily cut to the required size.
Features
Protection, Materials, and Adaptability
Impact absorption
Profile designed to provide greater protection in the event of an impact against an edge.
Recycled rubber from ELTs
Made from recycled rubber sourced from end-of-life tires.
Adaptable profile
The profile can be cut to the required length depending on the edge to be protected.
02 / Gallery
ECO-SAFE CORNER in Applications
The images show ECO-SAFE CORNER installed to protect corners and edges, highlighting how the profile can be adapted to the shape of the surface being covered.
Corner Protection
Continuous protection along an edge
03 / Applications
Targeted protection for corners and edges
ECO-SAFE CORNER is designed to protect exposed corners in areas where accidental impacts or contact may occur. The product is part of the ECO-FUN line; the UNI EN 913:2009 certification cited by the sources specifically applies to gymnastics equipment.
Exposed Edges
Targeted protection for areas most prone to accidental contact.
Continuous Edges and Profiles
The linear format allows you to protect even continuous sections by customizing the product to the required size.
Gym Equipment
This is the regulatory framework to which UNI EN 913:2009, as certified for ECO-SAFE CORNER, refers.
04 / Product Information

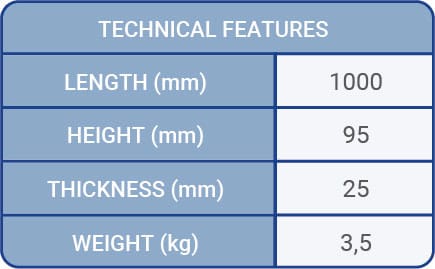

Dimensions and Weight of ECO-SAFE CORNER
ECO-SAFE CORNER is supplied as a 1, 000 mm profile, with a side length of 95 mm, a thickness of 25 mm, and a weight of 3.5 kg.
| Length | Side | Thickness | Weight |
|---|---|---|---|
| 1,000 mm | 95 mm | 25 mm | 3.5 kg |
05 / Testing and Certification
UNI EN 913:2009 and impact absorption test
The ECO-FUN catalog lists ECO-SAFE CORNER as certified to UNI EN 913:2009 for gymnastics equipment.
The Test Report No. 13.3132, issued by the Italian Institute for Toy Safety, documents a test performed on a gray ECO-SAFE CORNER sample regarding the impact absorption property required by paragraph 5.5 of UNI EN 913:2009. The tests conducted on the corner and sides of the sample yielded a result of P – Pass/Compliant.
Rule
UNI EN 913:2009
With reference to gym equipment.
Test Report
13.3132
Sample tested: ECO-SAFE CORNER, gray.
Result
Pass / Fulfill
For the impact absorption tests documented in the report.
Note: The scope of UNI EN 913 applies to gymnastics equipment and should not be extended to playground equipment.
06 / Colors
Five standard ECO-SAFE CORNER colors
ECO-SAFE CORNER is available in five standard colors : black, red, green, light blue, and gray.
Black
Red
Green
Blue
Gray
07 / Installation
Installation and Adjustment of the Profile
ECO-SAFE CORNER is designed for quick installation and can be easily cut to size. The application method should be chosen based on the substrate and the condition of the element to be protected.
08 / FAQ
FAQs About ECO-SAFE CORNER
Quick answers regarding the profile’s function, dimensions, certification, colors, and adaptability.
What is ECO-SAFE CORNER used for?
It is used to cover and protect the edges, absorbing impacts in the event of accidental contact, slips, or falls.
What are the dimensions of ECO-SAFE CORNER?
The profile is 1,000 mm long, with a side length of 95 mm, a thickness of 25 mm, and a weight of 3.5 kg.
Is ECO-SAFE CORNER certified?
The ECO-FUN catalog states that ECO-SAFE CORNER is certified in accordance with UNI EN 913:2009 for gymnastics equipment. Test Report No. 13.3132 also documents that a gray ECO-SAFE CORNER sample passed the impact absorption test required by paragraph 5.5 of the standard.
Does the UNI EN 913:2009 standard certify ECO-SAFE CORNER for playgrounds?
No. UNI EN 913:2009 applies to exercise equipment; the test report specifies that the standard does not apply to playground equipment.
What colors are available?
The standard colors are black, red, green, light blue, and gray.
Can the profile be adjusted to the required size?
Yes. ECO-SAFE CORNER can be easily adjusted to the required size.
Technical and Commercial Inquiry
Request information about ECO-SAFE CORNER
To evaluate the solution, we can check the quantity, color, required size, and characteristics of the surface on which the profile is to be installed.
